DESCRIPTION
Ride it, Fold it, Go Further

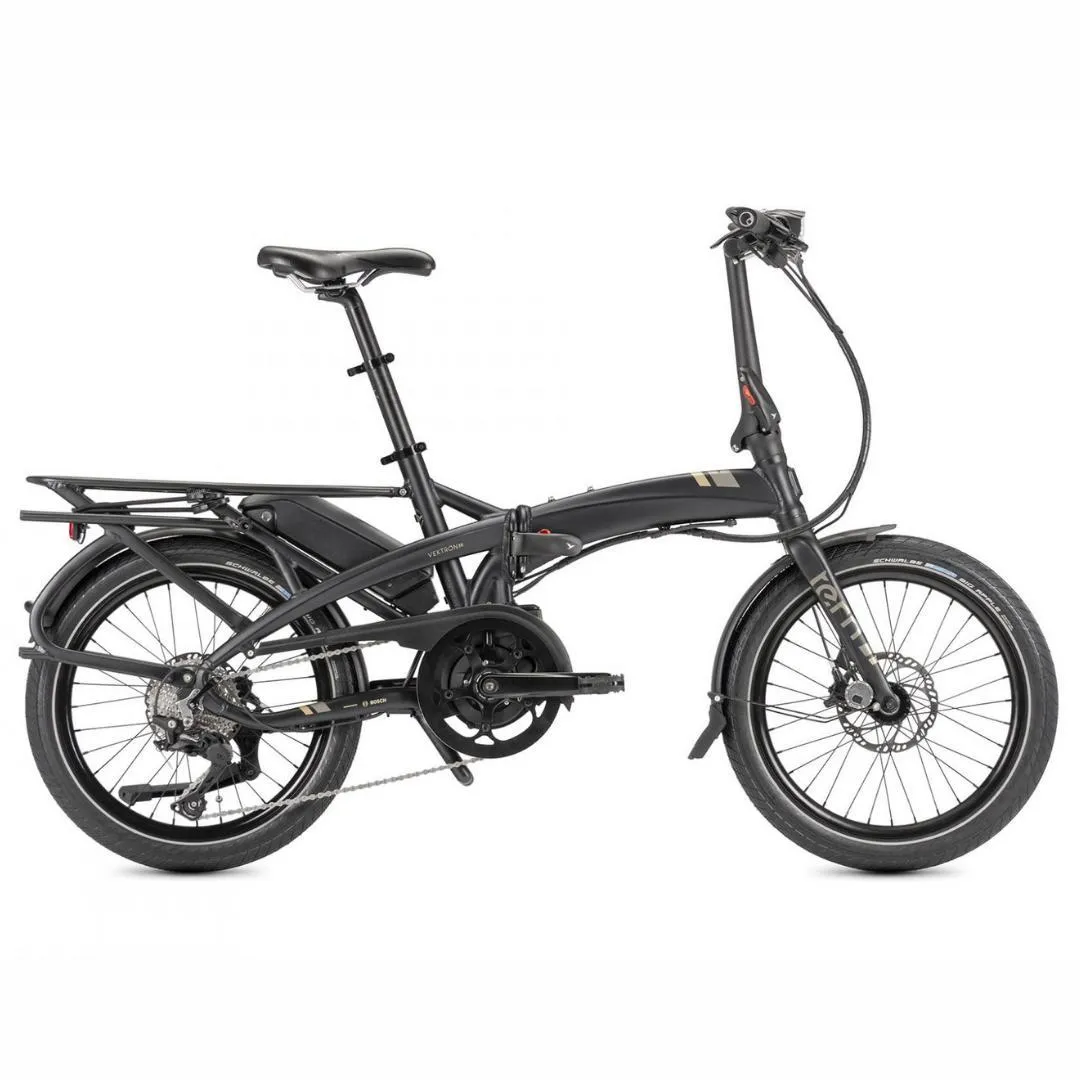

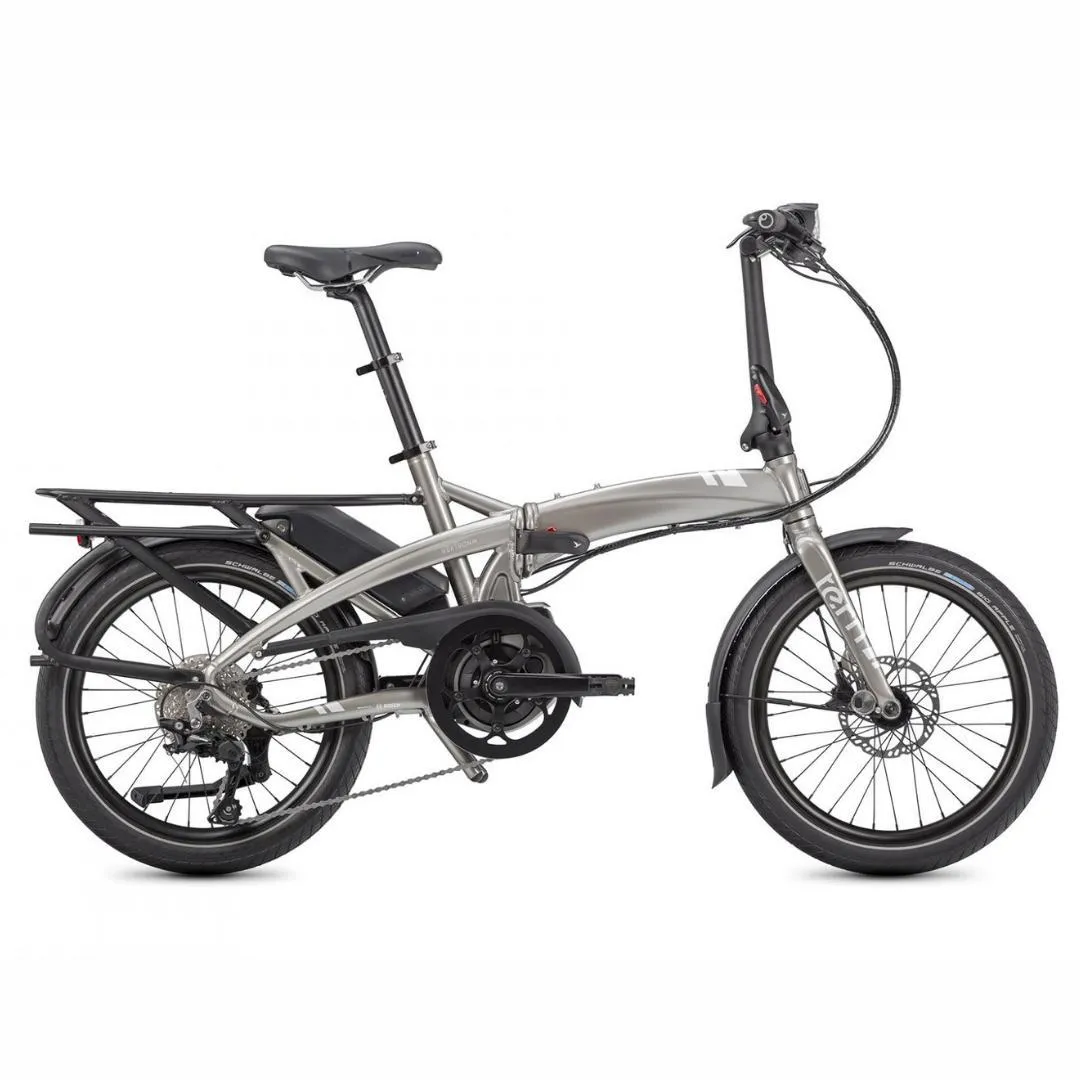

The Vektron is a best-in-class electric bike that folds in 10 seconds to go on trains, in cars, and under desks. Shorten distances and flatten the hills on your commute, or put a couple of Vektrons in the trunk of your car on your next trip, so you can explore further.
- New colors and updated styling
- Upgraded to the Bosch Performance electric drivetrain for 300% more assistance and 65 Nm of torque
- Updated frame with a reclining battery for a lower center of gravity and better ride
- Frame passed strict European safety standards for pedal-assist e-bikes, having been certified as EN15194-compliant by EFBE Prüftechnik
- Integrated Atlas V Rack works seamlessly with Thule Yepp Maxi and Nexxt Maxi child seats—no adapters needed
- Resizes in seconds to fit riders 147 – 195 cm (4’10” – 6’5”) so a single bike can be shared by the family

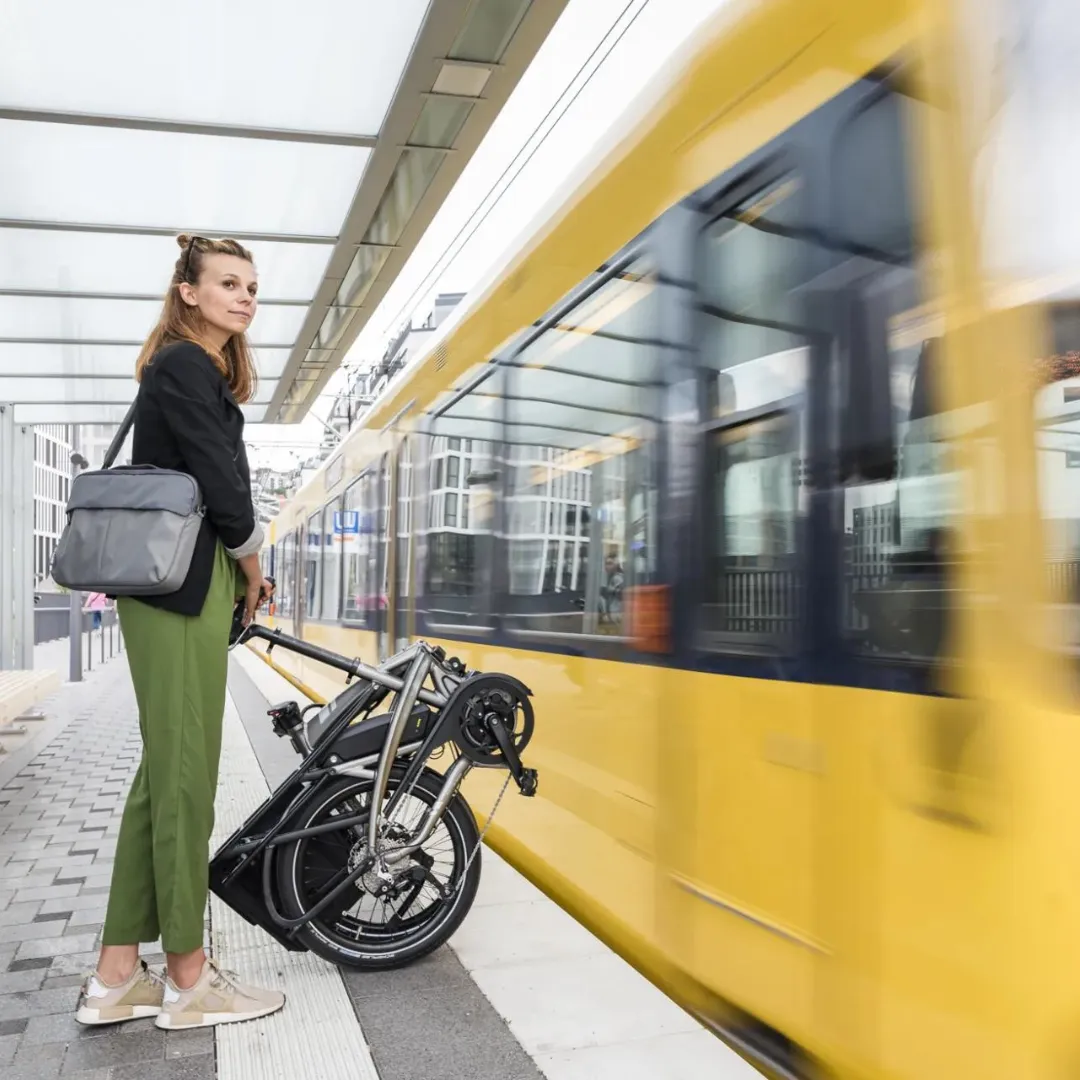

- Fits easily on buses, subways and taxis for electric multi-modal commuting
TECHNOLOGY
SPECS
- SPEEDS: 1 x 10
- WEIGHT: 22.1 kg (48.7 lb)
- GEAR INCHES: 30" - 97" (2.36 - 7.72 m)
- FOLDING SIZE: 41 × 86 × 68 cm (16.1 × 33.9 × 26.8 in)
- FOLDING TIME: 10 sec
- FRAME SIZES: One size
- DISTANCE: SEATPOST TO HANDLEBAR: 62 - 69 cm (24.4 - 27.2 in)
- DISTANCE: SADDLE TO PEDAL: 67 - 110 cm (26.4 - 43.3 in)
- SUGGESTED RIDER HEIGHT: 147 - 195 cm (57.9 - 76.8 in)
- MAX GROSS VEHICLE WEIGHT: 125 kg (275.6 lb)
- MAX RIDER WEIGHT: 105 kg (231.5 lb)
- FRAME: Vektron, hydroformed 7005-AL, OCL joint, 3 patented technologies
- FORK: Tern Tarsus, 6061-Al, hydroformed
- HANDLEPOST: Tern Physis 3D, 3D forged, 5 patented technologies
- STEM: Tern Andros, adjustable, forged construction, patented technology
- HEADSET: Flux Pro, angular contact bearings, Physis integrated
- HANDLEBAR: Kinetix Comp, double-butted 6061-AL, Tern Andros adapted
- GRIPS/BAR TAPE: Ergon

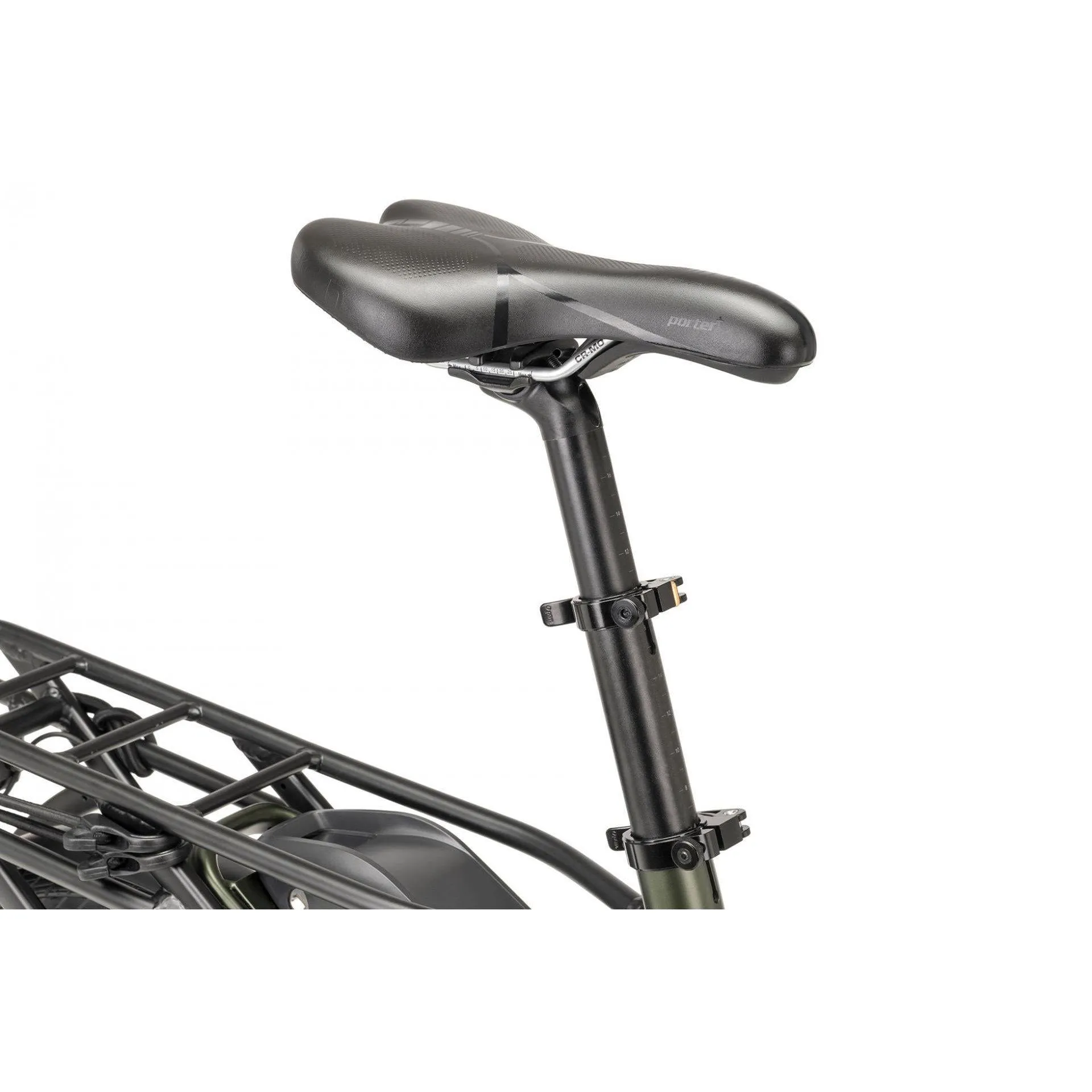

- SADDLE: Tern Porter , patented GripPad design, PrimeGel padding
- SEATPOST: Tern Telescope, 34.9/30.9 mm, 2014-AL
- SEATPOST CLAMP: Tern Collar, 6061-AL, 2pc

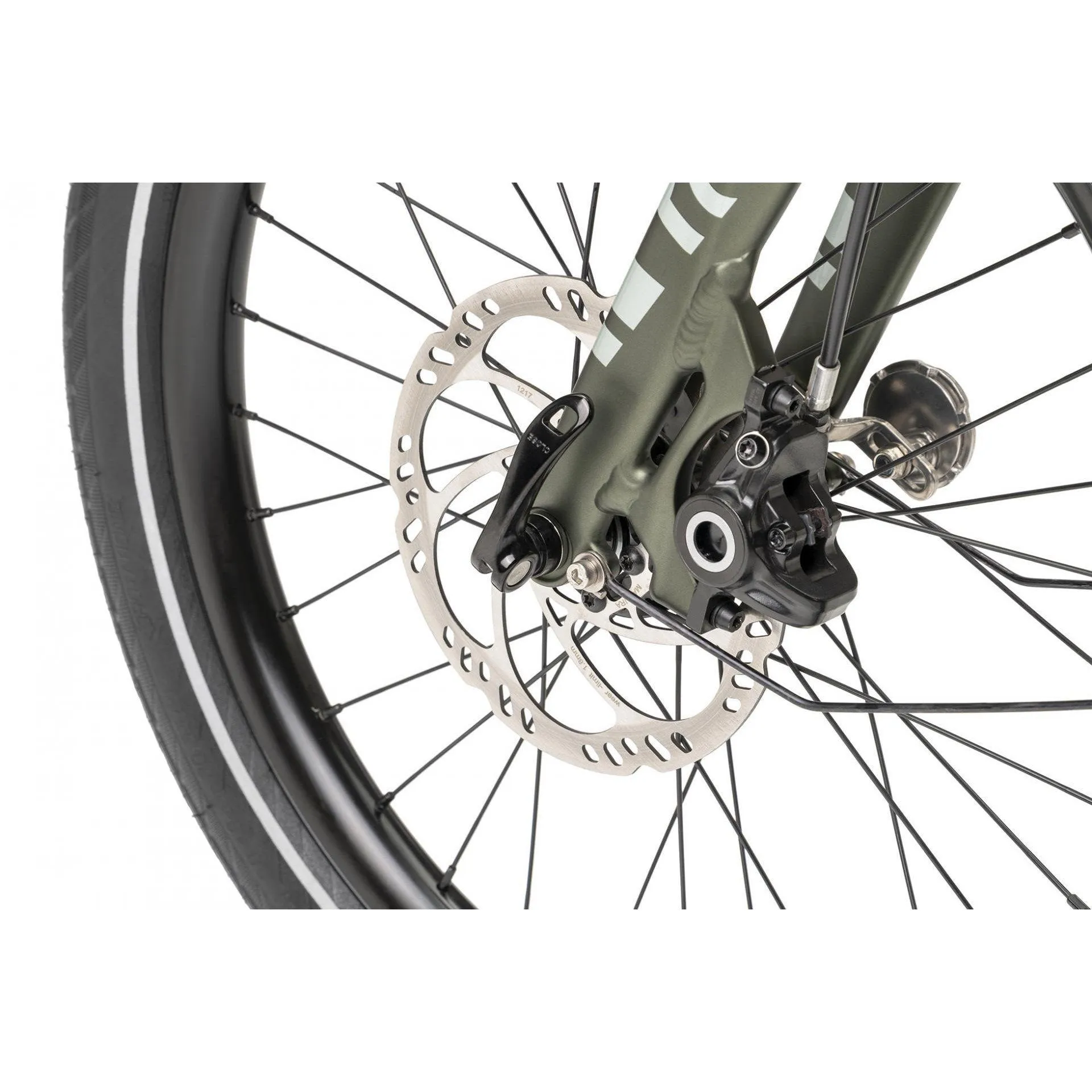

- BRAKES: Magura MT4, hydraulic disc
- SHIFTER(S): Shimano Deore, 1 x 10 spd
- REAR DERAILLEUR: Shimano Deore Shadow
- CRANKSET: Vektron custom, forged 6061-AL crankarm
- CASSETTE/FREEWHEEL: Shimano 11-36T, 10 spd
- BOTTOM BRACKET: Motor integrated
- CHAIN: 10 spd, DHT for eBike, GST corrosion resistant coating
- PEDALS: MKS EZY
- SHIFTER CABLE & HOUSING: Jagwire LEX-SL, slick treatment, alloy ferrules

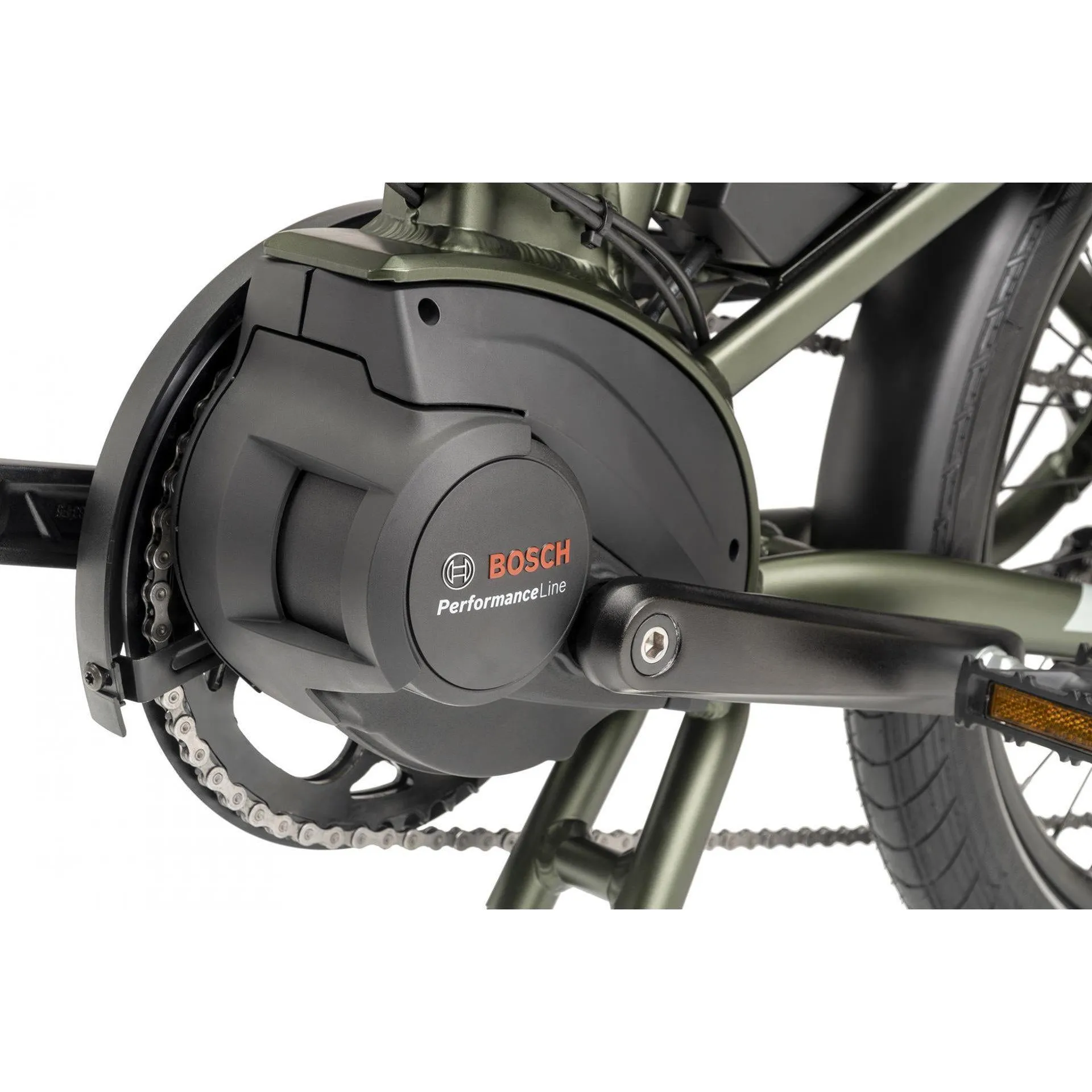

- MOTOR: Bosch Performance, 300% Assist, 65 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
- BATTERY: Bosch PowerPack 400 Wh
- DISPLAY: Bosch Purion, 4 mode selectable, walk assist
- RANGE: 400 Wh: 53 -106 km (34-68 mi)
- CHARGER: 220V, 4A (EU); 100-240V, 4A (US)
- BELL: Aluminum
- CHAINGUARD: SKS Chainblade

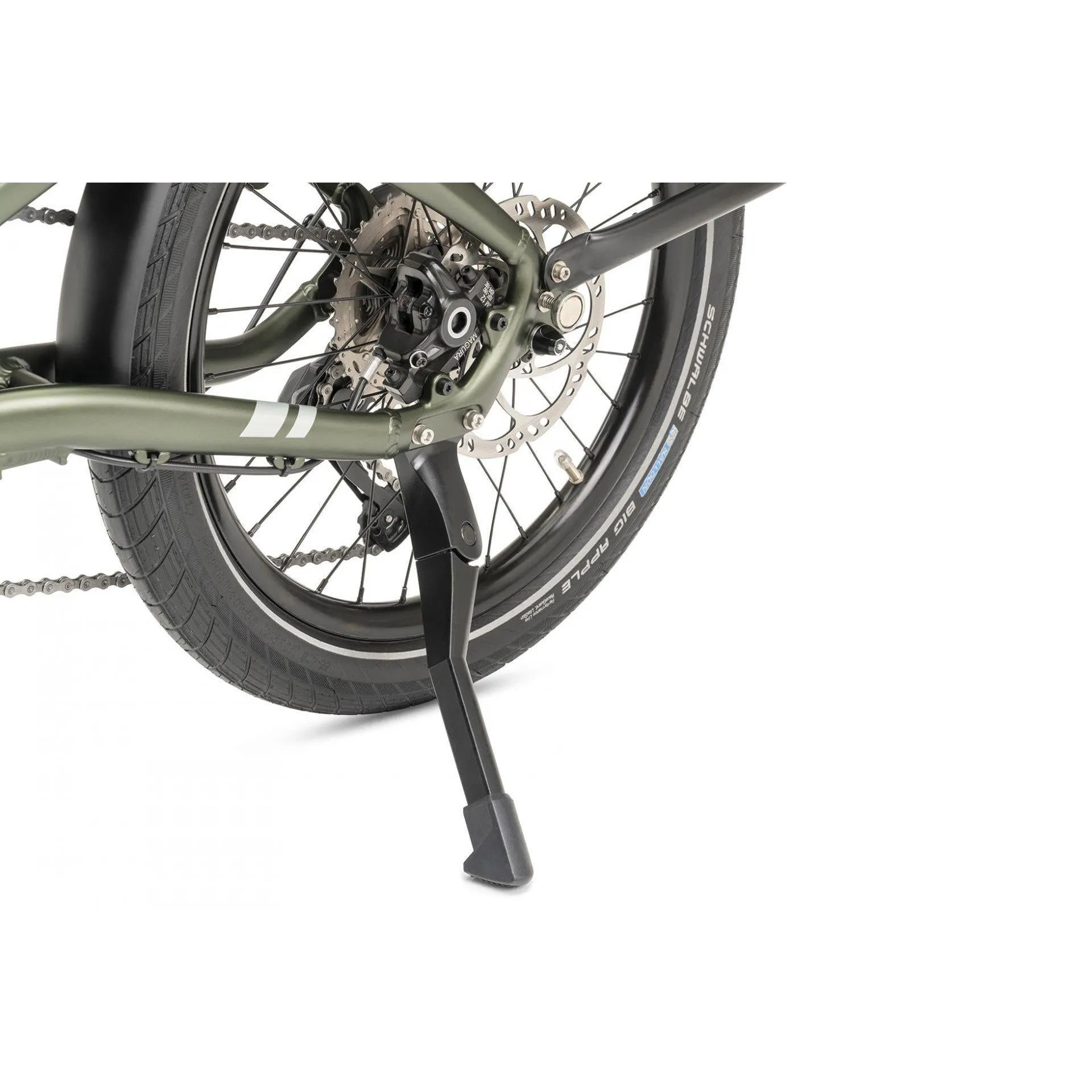

- KICKSTAND: URSUS, rear mount
- CLIP SYSTEM: Magnetix 3.0
- LUGGAGE SOCKET: Yes
- FRONT LIGHT: Tern Valo Direct, 190 lumens
- REAR LIGHT: Herrmans H-Trace, for eBike
- FENDERS: SKS, stainless hardware

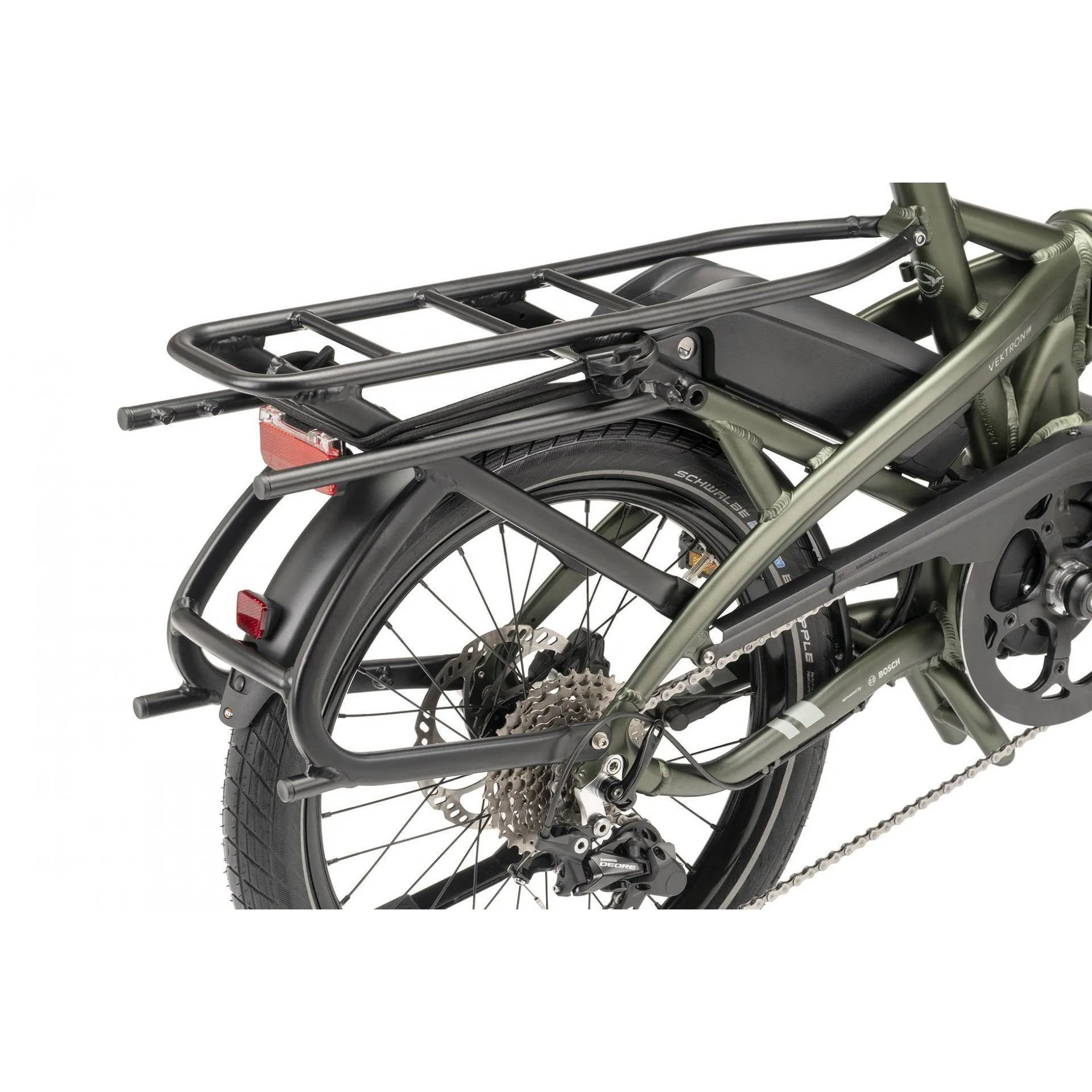

- RACK(S): Atlas V Rack, integrated 8 point mounting
